Rhenium Element Facts


Rhenium metal

Rhenium metal

75
Re
186.2

Data Zone

Classification: Rhenium is a transition metal
Color: silvery-white
Atomic weight: 186.207
State: solid
Melting point: 3186 oC, 3459 K
Boiling point: 5596 oC, 5869 K
Electrons: 75
Protons: 75
Neutrons in most abundant isotope: 112
Electron shells: 2,8,18,32,13,2
Electron configuration: [Xe] 4f14 5d5 6s2
Density @ 20oC: 21.0 g/cm3
Show more, including: Heats, Energies, Oxidation, Reactions, Compounds, Radii, Conductivities
Atomic volume: 8.85 cm3/mol
Structure: hcp: hexagonal close pkd
Hardness: 7.0 mohs
Specific heat capacity 0.13 J g-1 K-1
Heat of fusion 33.20 kJ mol-1
Heat of atomization 776 kJ mol-1
Heat of vaporization 715.0 kJ mol-1
1st ionization energy 760 kJ mol-1
2nd ionization energy 1260 kJ mol-1
3rd ionization energy 2510kJ mol-1
Electron affinity 14 kJ mol-1
Minimum oxidation number -3
Min. common oxidation no. 0
Maximum oxidation number 7
Max. common oxidation no. 4
Electronegativity (Pauling Scale) 1.9
Polarizability volume 9.7 Å3
Reaction with air mild, w/ht ⇒ Re2O7 (rhenium heptoxide)
Reaction with 15 M HNO3 mild, ⇒ HReO4 (perrhenic acid)
Reaction with 6 M HCl none
Reaction with 6 M NaOH none
Oxide(s) ReO2, ReO3, Re2O3, Re2O5, Re2O7
Hydride(s)
Chloride(s) Re3Cl9, ReCl4, ReCl5, ReCl6
Atomic radius 137 pm
Ionic radius (1+ ion)
Ionic radius (2+ ion)
Ionic radius (3+ ion)
Ionic radius (1- ion)
Ionic radius (2- ion)
Ionic radius (3- ion)
Thermal conductivity 48.0 W m-1 K-1
Electrical conductivity 5.8 x 106 S m-1
Freezing/Melting point: 3186 oC, 3459 K



Columbite

Rhenium was first found by Walter Noddack, Ida Tacke, and Otto Berg in columbite (shown above) and platinum ores. Image from New York State Museum.

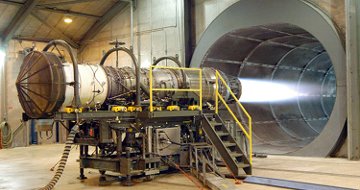

F-15 engine constructed with second-generation superalloys containing rhenium

F-15 engine constructed with second-generation superalloys containing rhenium

Discovery of Rhenium

Russian chemist Dmitri Mendeleev created the periodic table in 1869. From gaps he saw in the table, Mendeleev predicted the existence of undiscovered elements.

He said two of the elements he had predicted would have similar properties to manganese. He called these eka-manganese, now technetium, and dvi-manganese, now rhenium. (1) (Sanskrit: ‘eka’ means first and ‘dvi’ means second.)

Despite Mendeleev’s prediction, these elements remained undiscovered.

Rhenium’s existence was again predicted in 1913 by English physicist Henry Moseley.

Moseley had found that it made more sense to arrange elements in the periodic table by atomic number, not atomic weight as they had been previously. This led to gaps where undiscovered elements belonged; one of these was element 75.

Scientists now knew an element with atomic number 75 was definitely available for discovery. Another 12 years passed before the discovery was finally made.

In 1925, in Berlin, Germany, Walter Noddack, Ida Tacke, and Otto Berg found the new element in platinum ores and columbite. The group also announced their discovery of element 43 – now known as technetium – at the same time. They claimed to have found both elements through X-ray analysis.

Their discoveries were disputed by many, but repeated experiments proved element 75 had indeed been discovered. (2) (3)

56 years had passed since Mendeleev had published his periodic table; the periodic table was now complete, at least for stable elements. Rhenium was the final element discovered which had at least one stable isotope.

All future discoveries would be of elements with no stable isotopes; elements that would undergo radioactive decay.

The element name comes from Latin word ‘Rhenus’ meaning Rhine.


The Five Refractory Metals

Rhenium is one of the five refractory metals – note their close neighborhood relationship in the periodic table

A look at how the CFM56-5B jet engine works to power the Airbus A320. Jet engine turbines operate for extended time periods at temperatures above 1100 oC. The addition of rhenium helps ensure the metals in the turbines keep their strength at very high temperatures. (Copper, for example, would be liquid at these temperatures.) Turbine blades have typically contained about 3% rhenium. The newest generation contains about 1.5% rhenium. Aircraft engine manufacturers have been trying to reduce the amount of rhenium in engines, because worldwide demand for the metal is in danger of outpacing supply.


Appearance and Characteristics

Harmful effects:

The toxicity of rhenium and its compounds is not well documented. Elemental rhenium has been described as ‘relatively inert’ in the body.

Characteristics:

Rhenium is a rare, silvery-white, lustrous, dense metal.

It resists corrosion and oxidation but slowly tarnishes in moist air.

Of the elements, only carbon and tungsten have higher melting points and only iridium, osmium, and platinum are more dense.

Rhenium is one of the five major refractory metals (metals with very high resistance to heat and wear).

The other refractory metals are tungsten, molybdenum, tantalum and niobium.

Rhenium compounds include oxides, halides and sulfides.

Uses of Rhenium

Rhenium is used with platinum as catalysts in the production of lead-free, high-octane gasoline.

The metal is used in alloys for jet engines and in tungsten and molybdenum based alloys.

It is widely used as filaments for mass spectrographs.

Rhenium is also used as an electrical contact material.

Rhenium catalysts are exceptionally resistant to poisoning from nitrogen, sulfur and phosphorous and are useful in the hydrogenation of fine chemicals.

Abundance and Isotopes

Abundance earth’s crust: 7 parts per billion by weight, 0.8 parts per billion by moles

Abundance solar system: 100 parts per trillion by weight, 0.5 parts per trillion by moles

Cost, pure: $1600 per 100g

Cost, bulk: $ per 100g

Source: Rhenium is not found free in nature but is found in small quantities in platinum and molybdenum ores and many minerals. Commercially, rhenium is recovered as a by-product of copper refining.

Isotopes: Rhenium has 33 isotopes whose half-lives are known, with mass numbers from 160 to 192. Naturally occurring rhenium is a mixture of two isotopes, 185Re and 187Re, with natural abundances of 37.4% and 62.6% respectively.

References

1. Carsten Reinhart, Chemical Sciences in the 20th Century: Bridging Boundaries, 2008, John Wiley & Sons, p132
2. Harry Julius Emeléus, Advances in Inorganic Chemistry and Radiochemistry, 1968, Academic Press, p3
3. Loren C. Hurd, The Discovery of Rhenium, Journal of Chemical Education, October 1933, p605
