Molybdenum Element Facts


Molybdenum.

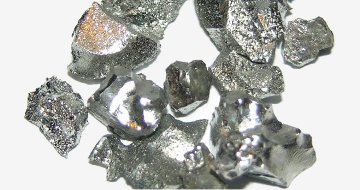

Lumps of molybdenum. Photo by Tomihahndorf.

42
Mo
95.94

Data Zone

Classification: Molybdenum is a transition metal
Color: silvery-white
Atomic weight: 95.94
State: solid
Melting point: 2623 oC, 2896 K
Boiling point: 4640 oC, 4913 K
Electrons: 42
Protons: 42
Neutrons in most abundant isotope: 56
Electron shells: 2,8,18,13,1
Electron configuration: [Kr] 4d5 5s1
Density @ 20oC: 10.2 g/cm3
Show more, including: Heats, Energies, Oxidation, Reactions, Compounds, Radii, Conductivities
Atomic volume: 9.4 cm3/mol
Structure: bcc: body-centered cubic
Hardness: 5.5 mohs
Specific heat capacity 0.25 J g-1 K-1
Heat of fusion 32.0 kJ mol-1
Heat of atomization 659 kJ mol-1
Heat of vaporization 598 kJ mol-1
1st ionization energy 684.9 kJ mol-1
2nd ionization energy 1588.2 kJ mol-1
3rd ionization energy 2620.5 kJ mol-1
Electron affinity 72 kJ mol-1
Minimum oxidation number -2
Min. common oxidation no. 0
Maximum oxidation number 6
Max. common oxidation no. 6
Electronegativity (Pauling Scale) 1.66
Polarizability volume 12.8 Å3
Reaction with air w/ht, ⇒ MoO3
Reaction with 15 M HNO3 none
Reaction with 6 M HCl none
Reaction with 6 M NaOH
Oxide(s) MoO2 (brown), MoO3 (white)
Hydride(s)
Chloride(s) MoCl2, MoCl3, MoCl4, MoCl5, MoCl6
Atomic radius 139 pm
Ionic radius (1+ ion)
Ionic radius (2+ ion)
Ionic radius (3+ ion) 83 pm
Ionic radius (1- ion)
Ionic radius (2- ion)
Ionic radius (3- ion)
Thermal conductivity 138 W m-1 K-1
Electrical conductivity 17.3 x 106 S m-1
Freezing/Melting point: 2623 oC, 2896 K



Discovery of Molybdenum

Molybdenite, also known as molybdena, is a soft black mineral that was once used to make pencils. The mineral was often confused for graphite and it was thought to contain lead. It is now known to be molybdenum disulfide (MoS2).

In 1778 Swedish scientist Carl W. Scheele proved that molybdenite was not graphite nor did it contain lead. Nitric acid does not react with graphite, while the molybdenite produced sulfuric acid and a white solid – we now know this was molybdenum oxide or possibly molybdenum oxide hydrate. (1)

Scheele concluded that the mineral contained a new element, but he did not isolate it, because he did not have a suitable furnace to reduce the white solid to the metal.

In 1781, Scheele’s friend and countryman, Peter J. Hjelm isolated the metal by reducing the white solid with carbon. He ground the two substances together using linseed oil to form a paste – the paste ensured intimate contact between the carbon and the molybdenite. Hjelm heated the mixture strongly in a closed crucible to produce the new metallic element. (2) Hjelm called his new metal molybdenum.

The element name comes from the Greek word ‘molybdos’ meaning lead.

Molybdenum Cycle

The molybdenum (Mo) cycle in soil: Molybdenum in the soil is taken up by tree roots and deposited in leaves. These leaves fall to the ground and decompose, releasing molybdenum. Image credit: Brookhaven National Laboratory

Without molybdenum, nothing could live!

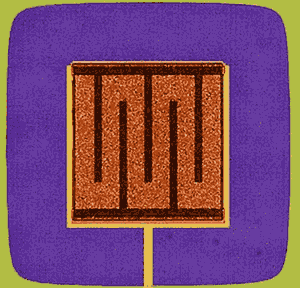

Molybdenum/copper sensor

The NIST “transition-edge sensor” is made of layers of molybdenum and copper. It is used it X-ray sensors for materials research and astronomy. Image credit: NIST


Appearance and Characteristics

Harmful effects:

Molybdenum is toxic in all but small quantities.

Characteristics:

Molybdenum is a silvery-white, high-melting metal.

It does not react with oxygen or water at room temperature and it also resists corrosion at ordinary temperatures.

When present in compounds, molybdenum exists mostly in the oxidation state IV and VI.

Molybdenum is one of the five major refractory metals (metals with very high resistance to heat and wear).

The Five Refractory Metals – note their close relationship in the periodic table

The other refractory metals are tungsten, tantalum, rhenium and niobium.

Molybdenum oxide (MoO3) is soluble in alkaline water, forming molybdate salts.

Uses of Molybdenum

Molybdenum is used in small quantities to harden steel and is used in many alloys.

Molybdenum’s strength and resistance to expanding or softening at high temperatures is particularly sought after in critical areas where high temperatures are common, such as in nuclear power plants and aircraft engines.

Molybdenum is used as glass furnace electrodes due to its high melting point.

It is also used in the petroleum industry, to catalyze the removal of organic sulfur compounds in coal liquification and gas liquification processes.

Molybdenum is an essential trace element for animals and plants. As with selenium, too much of it is toxic, too little of it is fatal.

In nitrogen fixing bacteria, molybdenum is a vital component of the nitrogenase enzyme which allows conversion of nitrogen gas in air into nitrates vital for plant growth.

Molybdenum is also present in 20 or so enzymes needed in animals’ metabolisms.

Abundance and Isotopes

Abundance earth’s crust: 1.2 parts per million by weight, 0.2 parts per million by moles

Abundance solar system: 9 parts per billion by weight, 0.1 part per billion by moles

Cost, pure: $44 per 100g

Cost, bulk: $ per 100g

Source: Molybdenum metal is not found free in nature. The main ore of molybdenum is molybdenite, (molybdenum disulfide, MoS2). It also occurs in wulfenite (lead molybdate) and powellite (calcium molybdate). Commercially, the metal is obtained by mining molybdenite directly and it is also recovered as a by-product of copper mining.

Isotopes: Molybdenum has 24 isotopes whose half-lives are known with mass numbers from 86 to 110. Naturally occurring molybdenum is a mixture of seven isotopes and they are found in the percentages shown: 92Mo (14.8%), 94Mo (9.2%), 95Mo (15.9%), 96Mo (16.7%), 97Mo (9.6%), 98Mo (24.1%) and 100Mo (9.6%). The most naturally abundant is 98Mo at 24.1%.

References

1. Mary Eagleson, Concise Encyclopedia Chemistry., Walter de Gruyter., 1994., p662.
2. Mary Elvira Weeks, The Discovery of the Elements V., Journal of Chemical Education., March 1932., p 462.
