The Periodic Table
"If all the elements are arranged in the order of their atomic weights, a periodic repetition of properties is obtained. This is expressed by the law of periodicity."
Dmitri Mendeleev, Principles of Chemistry, Vol. 2, 1902, P. F. Collier, p17.

"We have here a proof that there is in the atom a fundamental quantity, which increases by regular steps as one passes from one element to the next. This quantity can only be the charge on the central positive nucleus, of the existence of which we already have definite proof."
Henry Moseley, Philosophical Magazine, Vol. 26, 1913, p1030.

"The chemistry of an atom depends only on the number of electrons, which equals the number of protons and is called the atomic number. Chemistry is simply numbers, an idea Pythagoras would have liked. If you are an atom with one proton, you are hydrogen; two, helium;....."
Carl Sagan, Cosmos, 1980, Random House, p223. Photo: NASA.



Electron Shells

Electron shells underly the periodic table
A lithium atom has two electrons orbiting in an inner shell and only one electron orbiting in its outer shell. The outer shell is incomplete, and therefore unstable. Li atoms readily give up one electron to form positively charged, Li+ ions. These ions have the same stable electron configuration as the noble gas helium.

All Group 1 atoms can lose one electron to form positively charged ions. For example, potassium atoms do this to form ions with the same electron configuration as the noble gas argon.

Group 2 atoms lose two electrons to form positively charged ions. For example, magnesium atoms form Mg2+ ions. These have the same electron configuration as the noble gas neon.

Most elements in Group 3 lose three electrons to form 3+ ions. Boron, however, shows little tendency to form ions. It obtains a noble gas structure by sharing electrons with other atoms. This is called covalent bonding.

Elements in Groups 15,16 and 17, find it easier to gain electrons than lose them. For example, oxygen atoms gain two electrons to form O2- ions. These have the same electron configuration as the noble gas neon.

Elements in Group 14 could lose four, or gain four electrons to achieve a noble gas structure. In fact, if they are going to form ions, Group 14 elements form positive ions. Carbon and silicon form covalent bonds. Carbon's millions of organic compounds are all based on shared electrons in covalent bonds.

Many elements can form covalent bonds depending on the circumstances. For example, the bonding in water, H20, is mainly covalent; and while chlorine is bonded to sodium ionically in sodium chloride, it bonds to carbon covalently in carbon tetrachloride.



The Periodic Table

Author: Dr. Doug Stewart

The periodic table we use today is based on the one devised and published by Dmitri Mendeleev in 1869.

Mendeleev found he could arrange the 65 elements then known in a grid or table so that each element had:

1. A higher atomic weight than the one on its left. For example, magnesium (atomic weight 24.3) is placed to the right of sodium (atomic weight 23.0):



2. Similar chemical properties to other elements in the same column - in other words similar chemical reactions. Magnesium, for example, is placed in the alkali earths' column:



Mendeleev realized that the table in front of him lay at the very heart of chemistry. And more than that, Mendeleev saw that his table was incomplete - there were spaces where elements should be, but no-one had discovered them.

Just as Adams and Le Verrier could be said to have discovered the planet Neptune on paper, Mendeleev could be said to have discovered germanium on paper. He called this new element eka-silicon, after observing a gap in the periodic table between silicon and tin:



Similarly, Mendeleev discovered gallium (eka-aluminum) and scandium (eka-boron) on paper, because he predicted their existence and their properties before their actual discoveries.

Although Mendeleev had made a crucial breakthrough, he made little further progress. With the benefit of hindsight, we know that Mendeleev's periodic table was underpinned by false reasoning. Mendeleev believed, incorrectly, that chemical properties were determined by atomic weight. Of course, this was perfectly reasonable when we consider scientific knowledge in 1869.

In 1869 the electron itself had not been discovered - that happened 27 years later, in 1896.

In fact, it took 44 years for the correct explanation of the regular patterns in Mendeleev's periodic table to be found.


The Explanation is Found

The explanation came in 1913 from Henry Moseley, who fired electrons at atoms, resulting in the emission of x-rays. Moseley found that each element he studied emitted x-rays at a unique frequency.

When he looked at the frequencies emitted by a series of elements, he found a pattern that was best explained if the positive charge in the nucleus increased by exactly one unit from element to element.


A Graph Summarizing Moseley's Results
Moseley Graph


In other words, Moseley had found that elements are different from one another because their atoms have different numbers of protons. He discovered that elements' positions in the periodic table are better predicted by their atomic numbers than their atomic weights. (An element's atomic number is equal to the number of protons, and hence electrons, in one of its atoms.)

Moseley's discovery cleared up the cobalt-nickel and argon-potassium problems.

Considering the argon-potassium problem, it was known that argon has a higher atomic weight than potassium. According to Mendeleev's reasoning, argon should therefore be placed after potassium in the periodic table. But, doing this made no sense in terms of chemical properties.



Moseley's work showed that argon's atomic number is 18 and potassium's is 19. Therefore argon should be placed before potassium in a periodic table based on atomic numbers. Chemists around the world breathed a collective sigh of relief, because this agreed with the observed chemical properties of these elements.




Moseley also emulated Mendeleev's achievement of discovering new elements on paper, finding four atomic numbers with no matching elements. He predicted the existence of elements with atomic numbers 43, 61, 72, and 75. These elements were indeed discovered; we now call them technetium, promethium, hafnium and rhenium.

Today the chemical elements are still arranged in order of increasing atomic number (Z) as we look from left to right across the periodic table. We call the horizontal rows periods. For example, here is Period 4:




We call the vertical rows groups.

For example, here is Group 2:


Group 2


We also now know that an element's chemistry is determined by the way its electrons are arranged - its electron configuration.

Electrons in atoms can be pictured as occupying layers or shells surrounding the atomic nucleus. This is shown in the diagram of a lithium atom on the left side of this page. We picture electrons as little planets whizzing around a sun-like nucleus, which is where the protons and neutrons are located. This is called a Bohr representation of an atom. This is actually an approximation, but it's a good starting point for understanding the chemical properties of the elements.

If we exclude the transition metal elements, we can say that atoms which occupy the same group of the periodic table have the same number of outer electrons. For example, all of the elements in Group 2, shown left, have two outer electrons.

These outer electrons are called valence electrons.

Valence Electrons

It is the valence electrons which cause chemical reactivity.

All of the elements in Group 1 have one valence electron; Group 2, two valence electrons; Group 13, three valence electrons; Group 14, four valence electrons; Group 15, five valence electrons; Group 16, six valence electrons; Group 17, seven valence electrons; and Group 18, eight valence electrons, except for helium, which has two.

Group 18 is the noble gas group, a group of unreactive elements. The reluctance of the noble gases to react chemically is the key that unlocks our understanding of why other elements do react.


Unreactive Species: If an atom has the electron configuration of a noble gas it will be chemically unreactive, or only react with difficulty.

Reactive Species: If an atom does not have the same electron configuration as a noble gas, it will tend to react in order to achieve this.


The noble gases are unreactive, because their outer electron shells are full. A full shell of outer electrons is a particularly stable arrangement. This means that noble gas atoms neither gain nor lose electrons easily; they react with other atoms with great difficulty, or not at all.

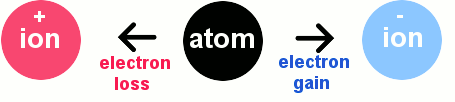

Other atoms lose electrons, gain electrons or share electrons to achieve the same electron configuration as a noble gas - in doing so, they form chemical bonds, and make new substances.

A Sodium Atom Reacts with a Chlorine Atom to Make Sodium Chloride


For example, in the diagram above, a sodium atom loses its single valence electron to a chlorine atom. When an atom loses or gains one or more electrons, it can no longer be described as an atom - it is called an ion.

All ions are either positively or negatively charged.




Since our sodium atom has lost a negatively charged electron, it becomes a positively charged sodium ion: Na+. This sodium ion, with one electron fewer than the sodium atom, has the same electron configuration as the noble gas neon and is chemically stable.

The chlorine atom, which starts with seven valence electrons, gains a single electron and becomes a negatively charged chlorine ion: Cl-. This ion has the same electron configuration as the noble gas argon, and therefore this ion is chemically stable too.

The positively charged sodium ion and negatively charged chlorine ion attract one another electrostatically, forming a stable chemical compound, sodium chloride. These electrostatic bonds are called ionic bonds.

For the transition metals the situation is a little more complicated than those described above, because electrons from the lower shells in transition metal atoms can become valence electrons. This is why, for example, we can get different types of copper ions, Cu+ and Cu2+, and iron ions, Fe2+ and Fe3+.

The number of valence electrons in atoms is the basis of the regular patterns observed by Mendeleev in 1869, patterns which ultimately have given us our modern periodic table.

Ionization energies of the elements - the energy required to remove one electron.
These measurements were not possible in Mendeleev's time.
They illustrate the periodic (regular pattern) behavior of the elements.

Ionization Energies
